Cast iron square mouth dust removal rotary valve | DN250 pressure resistant 0.6MPa dust sealing solution

Name: Cast iron square mouth dust removal rotary valve DN250 pressure resistant 06MPa dust sealing solution
Brand: TECLION
Price: 1 USD

Wholesale Cast iron square mouth dust removal rotary valve | DN250 pressure resistant 0.6MPa dust sealing solution from china suppliers

Brand Name : TECLION

Model Number : RDWS

Certification : CC CE

Place of Origin : China,Anhui

MOQ : 1

Price : Get the Best Price

Payment Terms : T/T

Supply Ability : Usually every one sets for 35- 40 days

Delivery Time : 35 working days

Packaging Details : Professional export fumigation free wooden crate

Classification : Rotary valve

Size : DN250X250

Valve material : Casting iron

Height : 360

Weight : 100kg

Surface : Spray painting

Bearing : External

Suitable pressure : 1.0 barg

Contact Now

Cast iron square mouth dust removal rotary valve

DN250 pressure resistant 0.6MPa dust sealing solution

Product Description:

The square mouth rotary valve is an important equipment in gravity feeding and ventilation dust removal systems. The main function is to continuously discharge the materials from the unloader or dust removal equipment, while ensuring that the pressure inside the equipment is not exposed to atmospheric pressure. Due to its working characteristics, it is widely used in many fields such as cement and dust removal. The material is usually cast iron. According to customer needs, valve bodies can be treated with spray coating of PTFE, tungsten carbide, and other materials.

Product Features:

1)Square design for inlet and outlet

2)Precision cast shell

3)High load design

4)Optional spray of Teflon

5)Optional tungsten carbide spray

6)Can be used in explosion-proof areas

Product Parameters:

No	Item	Note
1	Valve type	Rotary valve
2	Size	300x300mm
3	Height	360 mm
4	Temperature	No more than 250 degrees
5	Flange	PN10
6	Rotor volume	10 Litre
7	Configuration	Worm gear reducer or cycloidal reducer
8	Weight	100kg (Excluding driver)

Cast iron square mouth dust removal rotary valve | DN250 pressure resistant 0.6MPa dust sealing solution

Product Tags:

0.6MPa rotary valve

DN250 rotary valve

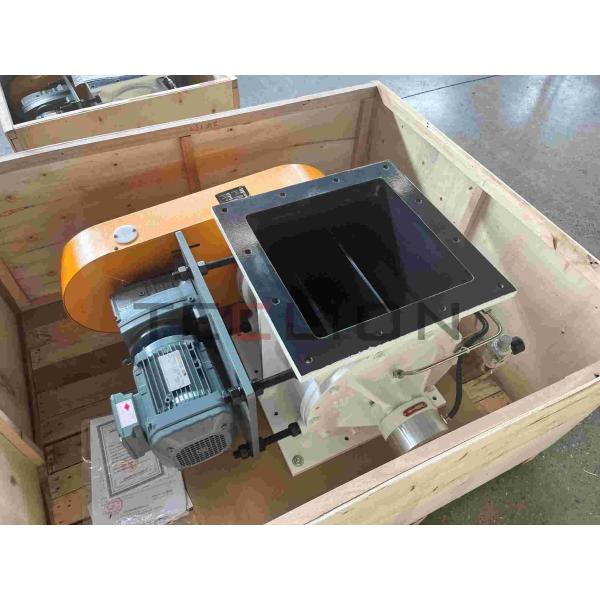

Cast iron square mouth dust removal rotary valve | DN250 pressure resistant 0.6MPa dust sealing solution Images
