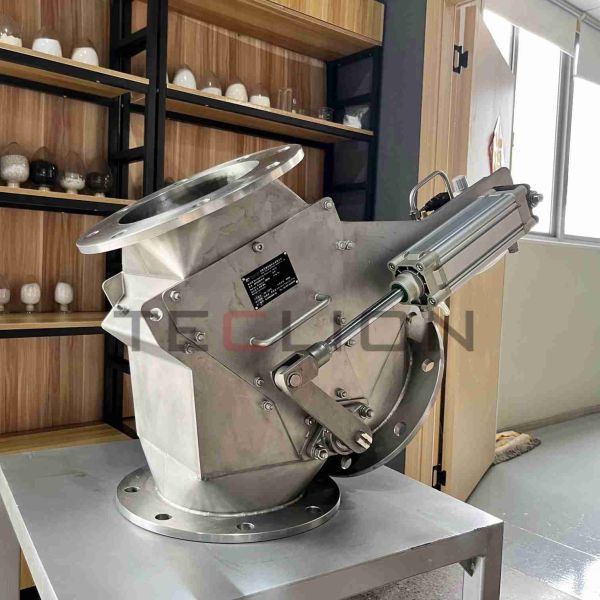

A swing plate directional valve with an angle of 60 ° suitable for gravity unloading

Name: A swing plate directional valve with an angle of 60 suitable for gravity unloading
Brand: TECLION
Price: 1 USD

Wholesale A swing plate directional valve with an angle of 60 ° suitable for gravity unloading from china suppliers

Brand Name : TECLION

Model Number : DFV200

Certification : CC CE

Place of Origin : China,Anhui

MOQ : 1

Price : Get the Best Price

Payment Terms : T/T

Supply Ability : Usually every one sets for 35- 40 days

Delivery Time : 35 working days

Packaging Details : Professional export fumigation free wooden crate

name : Swing plate directional valve

Material : stainless steel

Color : Original color

Temperature : -20℃+120℃

Aplication : Lithium ion chemical plastics minerals

Material type : PC PP PVC PBS PE PET ABS

height : 55CM

weight : 134KG

Contact Now

A swing plate directional valve with an angle of 60 ° suitable for gravity unloading

Product Description:

Directional valve, also known as three-way directional valve or branch valve, is a specialized equipment used in solid material (powder, granular material) conveying systems to switch the flow direction of materials in pipelines. Its fully sealed structure is suitable for outdoor environments and explosion-proof areas.

Product Features:

1)Special seals at both ends of the rotor shaft ensure that dust does not leak out

2)Compact structure, beautiful appearance, fast movement speed, precise angle

3)No dead corners design, no accumulation of materials

4)Swing plate directional valve is suitable for reversing materials on gravity feeding pipelines

5)Optional locator

6)Used in explosion-proof areas

Product Parameters:

No	Item	Note
1	Valve type	directional valve
2	Size	DFV200
3	body material	304 304L 316 316L
4	Temperature	-20-120℃
5	Flange form	face flange
6	seal type	PTFE seal
7	exit angle	Commonly used are single-sided 45 degrees and symmetrical 60 degrees. Other angles can also be manufactured

A swing plate directional valve with an angle of 60 ° suitable for gravity unloading
